AXIS 63

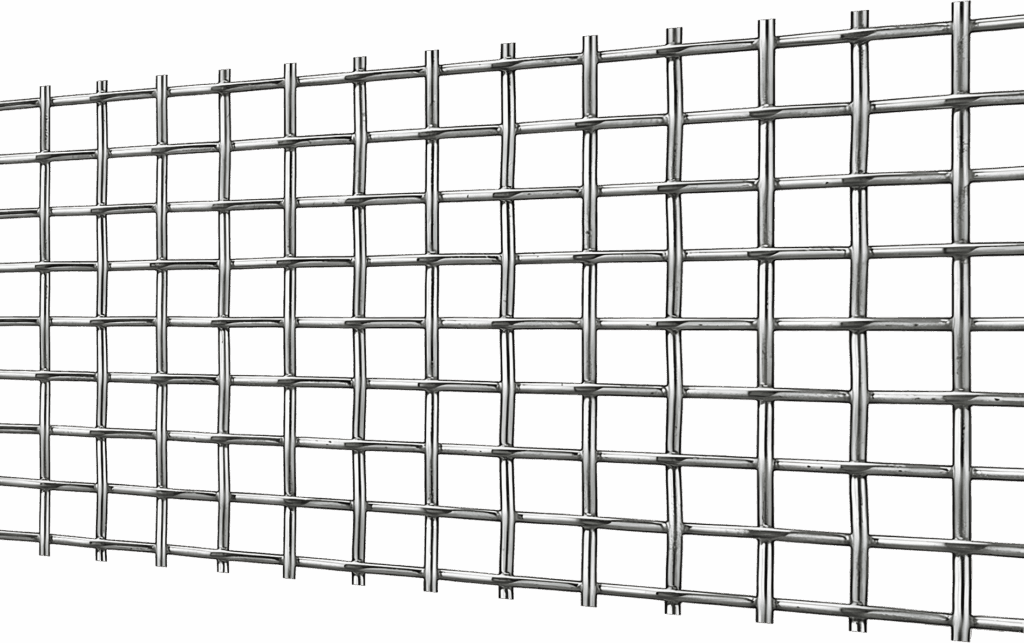

This sleek, delicate plain crimp wire mesh boasts a timelessly classic design, adding understated elegance to various scenarios. It is perfectly suited for parking garage facades, guardrail infills, glass interlayers and ventilation & heat dissipation applications.
Technical Data
| Model | AXIS 63 |
|---|---|
| Series | AXIS |
| Construction | Plain crimp |
| Panel type | Rigid |
| Open area | 63.5% |
| Overall thickness | 5/32" (4.06 mm) |
| Aspect ratio (opening) | 1.00:1 |
| Wire diameter (nominal) | 0.079" (2.0 mm) |
| Opening (nominal, W x H) | 0.315" x 0.315" (8.0 x 8.0 mm) |
| Wire centers (nominal) | 0.394" x 0.394" (10.0 x 10.0 mm) |
| Opening limitation (largest sphere) | 0.315" (8.0 mm) |
| Weight (nominal, stainless steel) | 5.4 kg/m² (1.11 lb/ft²) |
| Standard materials | Stainless steel 304 / 316, Plain / galvanized steel, Brass, Bronze |
| Finishes | Mill, brushed or electropolished; powder coating (any RAL); PVD colors (titanium gold, rose gold, champagne, black titanium); antique plating (interior only) |
| Supply format | Rolls, cut sheets or framed panels made to your drawings. Maximum size depends on pattern and alloy - send your opening sizes for confirmation. |
Weight by Material (nominal)
| Material | kg/m² | lb/ft² |
|---|---|---|
| Stainless steel 304 / 316 | 5.4 | 1.11 |
| Plain / galvanized steel | 5.3 | 1.09 |
| Brass | 5.8 | 1.19 |
| Bronze | 6.0 | 1.23 |
Performance & Design Data
| Solidity (1 - open area) | 36.5% |
|---|---|
| Geometric cut-off angle (short opening) | 63° |
| Railing infill check (100 mm / 4" sphere) | Openings smaller than 100 mm (4") |
| Fire behaviour | Bare stainless steel is a non-combustible metal. Coated, plated or backed finishes: classification per project test report. |
| Corrosion guidance | 304 for interiors and protected exteriors; 316 / 316L for exterior, coastal and polluted environments. |
Beyond this incidence angle, direct light and view through the short opening are blocked (louver effect).
Installation & Framing
| Recommended fixing | Framed panels: U-edging (captured edge), flat-bar clamp or angle frame. For wall and elevator cladding, clip or bond to an aluminum honeycomb or MDF backer. |
|---|
How to Specify
- Pattern name, e.g. AXIS 81
- Material and grade, e.g. Stainless steel 316
- Finish, e.g. PVD Black Titanium or RAL 9005
- Panel width x height and quantity
- Opening direction (rectangular patterns)
- Edge or frame profile and size
- Indoor or exterior, and site location
- Target delivery date
Nominal values are calculated from pattern geometry for stainless steel and may vary by approx. 10-15%. Weights for other alloys are calculated from the stainless steel value. Wire diameter, opening, alloy, finish and panel size can be customized - please confirm final specifications with a physical sample.
Design Files (CAD / BIM)
Recommended framing details: U-edging (captured edge)Flat bar (clamped edge)
All patterns: Design Resources →
Free download. IFC4 opens in Revit, ArchiCAD, Rhino, SketchUp and Navisworks; DXF in AutoCAD and BricsCAD. Native Revit families on request.
Key Features
- Sleek, delicate plain crimp weave
- Timeless classic look with understated elegance
- Good airflow for ventilation and heat dissipation

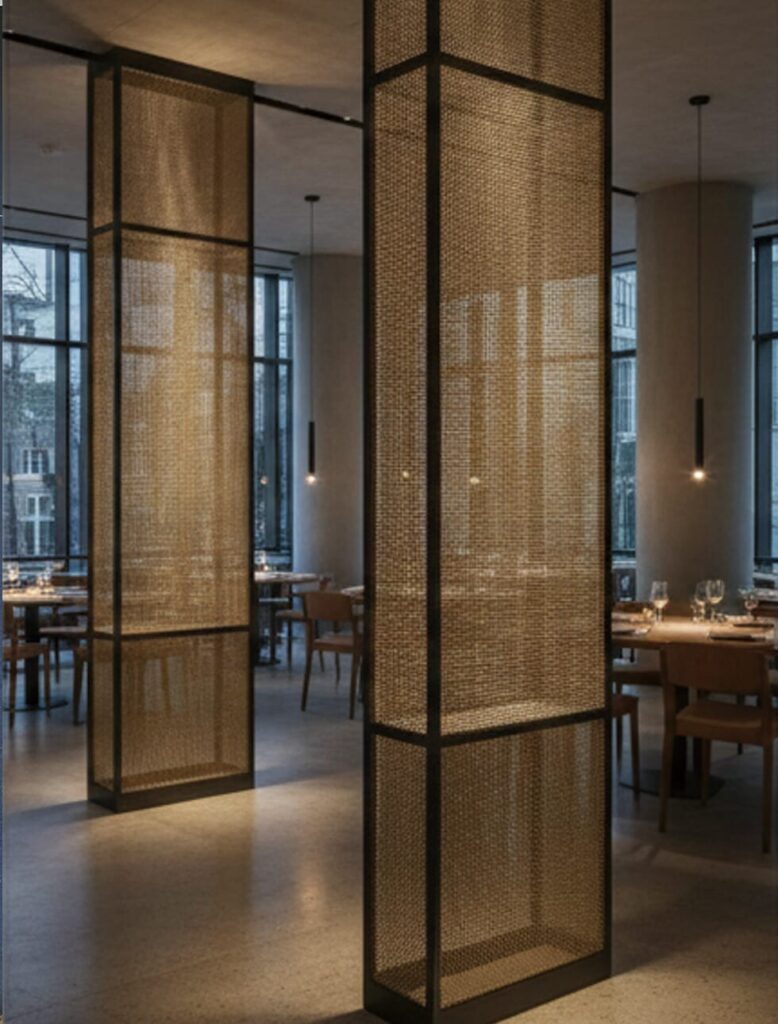

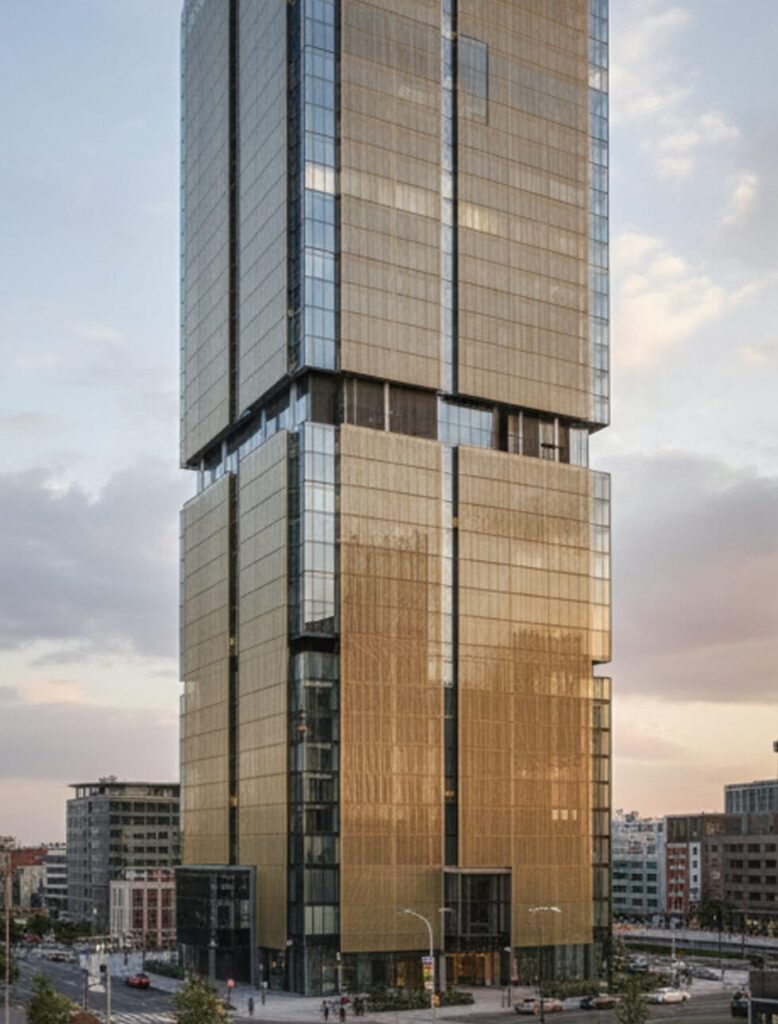

Ideal for: Parking garage facades, guardrail infills, glass interlayers and ventilation screens.
More AXIS Series Patterns
Need a frame or edge finish? See U-edging, flat bar and angle framing options.
Applications
Architectural Decoration Sunshade

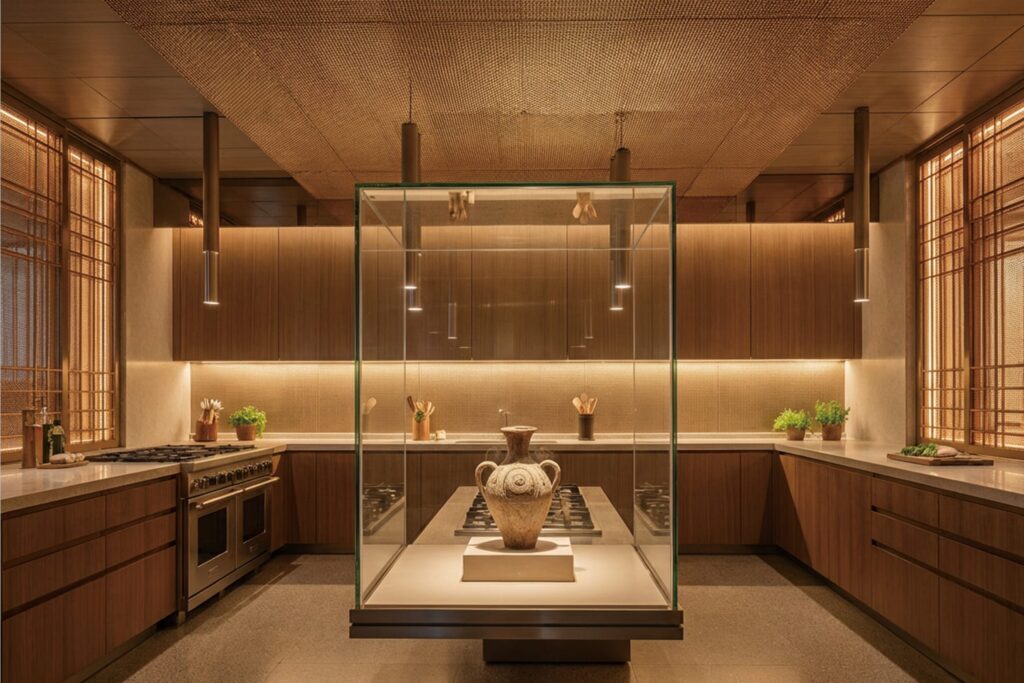

Interior ceiling decoration
