VERTEX 83

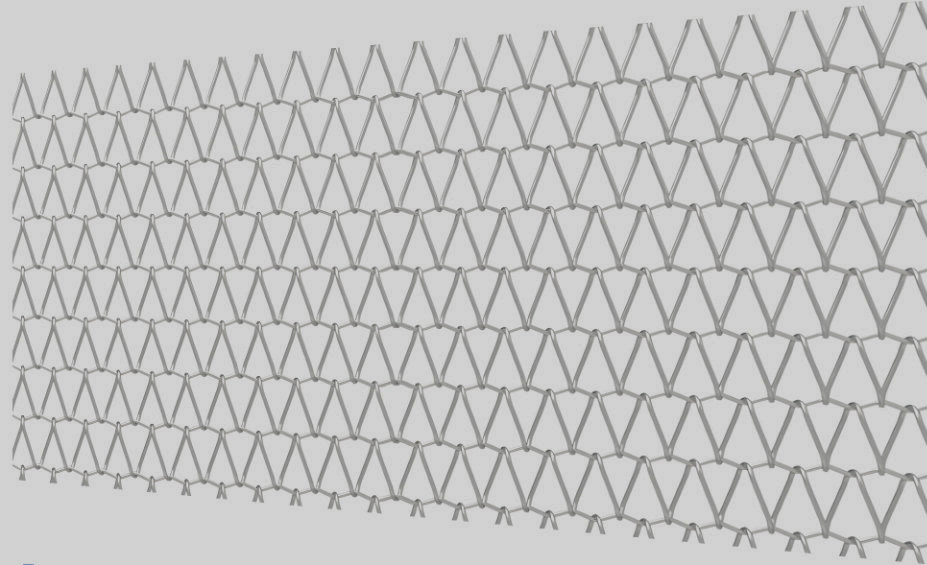

This woven architectural mesh features a crisp, repeating triangular pattern that creates a strong visual rhythm on both interior and exterior surfaces. Durable and corrosion resistant, it combines a bold decorative effect with high transparency, making it a top choice for facade curtain walls, parking garage screens, sun shading, guardrail infills and interior feature walls.
Technical Data
| Model | VERTEX 83 |
|---|---|
| Series | VERTEX |
| Construction | Spiral coil with cross rods (triangular pattern) |
| Panel type | Flexible (one direction) |
| Open area | 83.2% |
| Overall thickness | On request |
| Spiral wire diameter | 0.041" (1.05 mm) |
| Cross rod diameter | 0.041" (1.05 mm) |
| Pitch (nominal) | spiral 3/8" (9.5 mm), rod 39/64" (15.5 mm) |
| Opening (nominal, W x H) | Pattern-specific |
| Weight (nominal, stainless steel) | 2.2 kg/m² (0.45 lb/ft²) |
| Standard materials | Stainless steel 304 / 316 |
| Finishes | Mill, brushed or electropolished; powder coating (any RAL); PVD colors (titanium gold, rose gold, champagne, black titanium); antique plating (interior only) |
| Supply format | Rolls, cut sheets or framed panels made to your drawings. Maximum size depends on pattern and alloy - send your opening sizes for confirmation. |
Weight by Material (nominal)
| Material | kg/m² | lb/ft² |
|---|---|---|
| Stainless steel 304 / 316 | 2.2 | 0.45 |
Performance & Design Data
| Solidity (1 - open area) | 16.8% |
|---|---|
| Fire behaviour | Bare stainless steel is a non-combustible metal. Coated, plated or backed finishes: classification per project test report. |
| Corrosion guidance | 304 for interiors and protected exteriors; 316 / 316L for exterior, coastal and polluted environments. |
Installation & Framing
| Recommended fixing | Tensioned system: woven-in rod with eyebolts top and bottom and compression springs at the base; or framed infill panels. |
|---|
How to Specify
- Pattern name, e.g. AXIS 81
- Material and grade, e.g. Stainless steel 316
- Finish, e.g. PVD Black Titanium or RAL 9005
- Panel width x height and quantity
- Opening direction (rectangular patterns)
- Edge or frame profile and size
- Indoor or exterior, and site location
- Target delivery date
Nominal values are calculated from pattern geometry for stainless steel and may vary by approx. 10-15%. Weights for other alloys are calculated from the stainless steel value. Wire diameter, opening, alloy, finish and panel size can be customized - please confirm final specifications with a physical sample.
Design Files (CAD / BIM)
Recommended framing details: Tension systemAngle frame
All patterns: Design Resources →
Free download. IFC4 opens in Revit, ArchiCAD, Rhino, SketchUp and Navisworks; DXF in AutoCAD and BricsCAD. Native Revit families on request.
Key Features
- Crisp, repeating triangular woven pattern
- Strong visual rhythm with high transparency
- Durable and corrosion resistant for interior and exterior use
Ideal for: Facade curtain walls, parking garage screens, sun shading, guardrail infills and feature walls.
