AXIS WELD 84

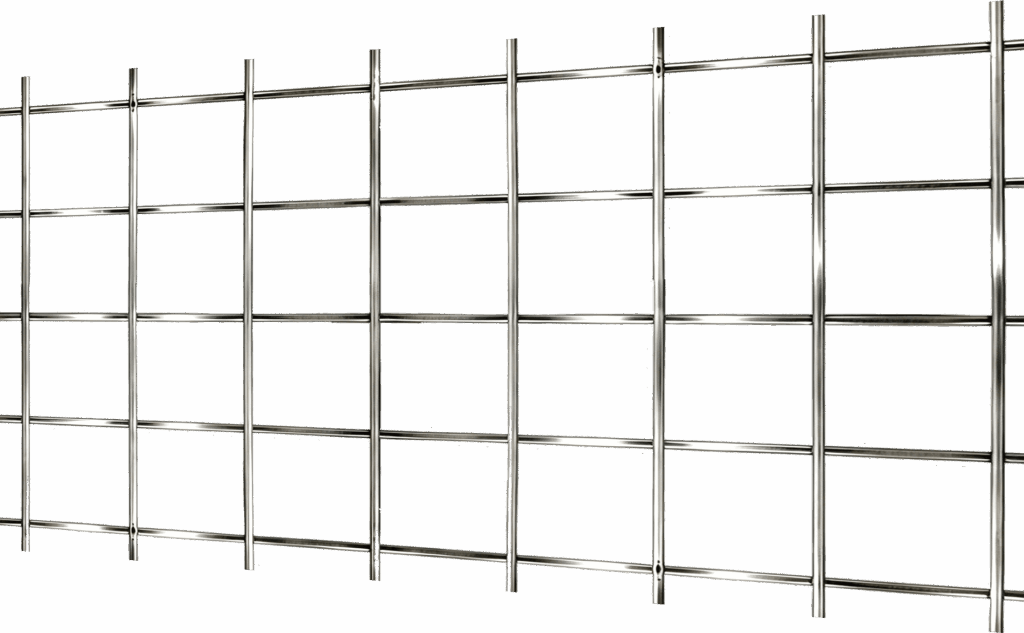

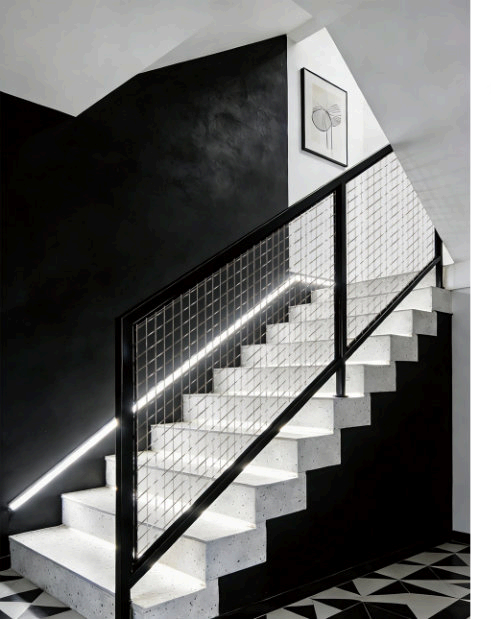

This sleek architectural welded wire mesh features a clean square grid design, ideal for landscape grilles, ceilings, handrail infills and wayfinding backdrops, bringing decorative charm to diverse applications.
Technical Data
| Model | AXIS WELD 84 |
|---|---|
| Series | AXIS |
| Construction | Resistance-welded square grid |
| Panel type | Rigid, welded |
| Open area | 84.5% |
| Overall thickness | 21/64" (8.23 mm) |
| Aspect ratio (opening) | 1.00:1 |
| Wire diameter (nominal) | 0.161" (4.1 mm) |
| Opening (nominal, W x H) | 1.843" x 1.843" (46.8 x 46.8 mm) |
| Wire centers (nominal) | 2.000" x 2.000" (50.8 x 50.8 mm) |
| Opening limitation (largest sphere) | 1.843" (46.8 mm) |
| Weight (nominal, stainless steel) | 4.1 kg/m² (0.84 lb/ft²) |
| Standard materials | Stainless steel 304 / 316, Plain / galvanized steel |
| Finishes | Mill, brushed or electropolished; powder coating (any RAL); PVD colors (titanium gold, rose gold, champagne, black titanium); antique plating (interior only) |
| Supply format | Rolls, cut sheets or framed panels made to your drawings. Maximum size depends on pattern and alloy - send your opening sizes for confirmation. |
Weight by Material (nominal)
| Material | kg/m² | lb/ft² |
|---|---|---|
| Stainless steel 304 / 316 | 4.1 | 0.84 |
| Plain / galvanized steel | 4.1 | 0.83 |
Performance & Design Data
| Solidity (1 - open area) | 15.5% |
|---|---|
| Geometric cut-off angle (short opening) | 80° |
| Railing infill check (100 mm / 4" sphere) | Openings smaller than 100 mm (4") |
| Fire behaviour | Bare stainless steel is a non-combustible metal. Coated, plated or backed finishes: classification per project test report. |
| Corrosion guidance | 304 for interiors and protected exteriors; 316 / 316L for exterior, coastal and polluted environments. |
Beyond this incidence angle, direct light and view through the short opening are blocked (louver effect).
Installation & Framing
| Recommended fixing | Framed panels (U-edging, flat bar or angle), or welded tabs and clamps to posts. Welded intersections allow cutting to any shape without unraveling. |
|---|
How to Specify
- Pattern name, e.g. AXIS 81
- Material and grade, e.g. Stainless steel 316
- Finish, e.g. PVD Black Titanium or RAL 9005
- Panel width x height and quantity
- Opening direction (rectangular patterns)
- Edge or frame profile and size
- Indoor or exterior, and site location
- Target delivery date
Nominal values are calculated from pattern geometry for stainless steel and may vary by approx. 10-15%. Weights for other alloys are calculated from the stainless steel value. Wire diameter, opening, alloy, finish and panel size can be customized - please confirm final specifications with a physical sample.
Design Files (CAD / BIM)
Recommended framing details: U-edging (captured edge)Angle frame
All patterns: Design Resources →
Free download. IFC4 opens in Revit, ArchiCAD, Rhino, SketchUp and Navisworks; DXF in AutoCAD and BricsCAD. Native Revit families on request.
Key Features
- Architectural welded mesh with a clean square grid
- Very high open area for light and airflow
- Rigid panels that are simple to frame and install
Ideal for: Landscape grilles, ceilings, handrail infills and wayfinding backdrops.
More AXIS Series Patterns
Need a frame or edge finish? See U-edging, flat bar and angle framing options.
Applications

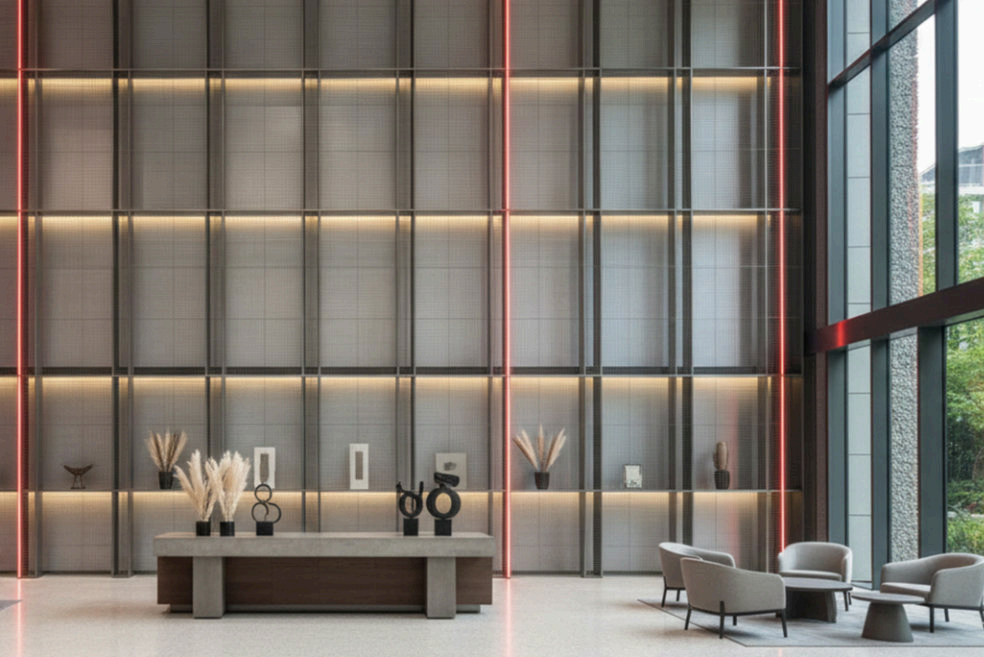

Elevator decoration

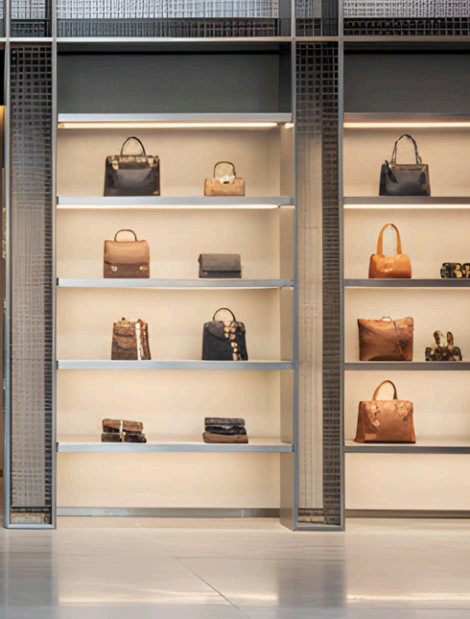

Background decoration
