AXIS 32

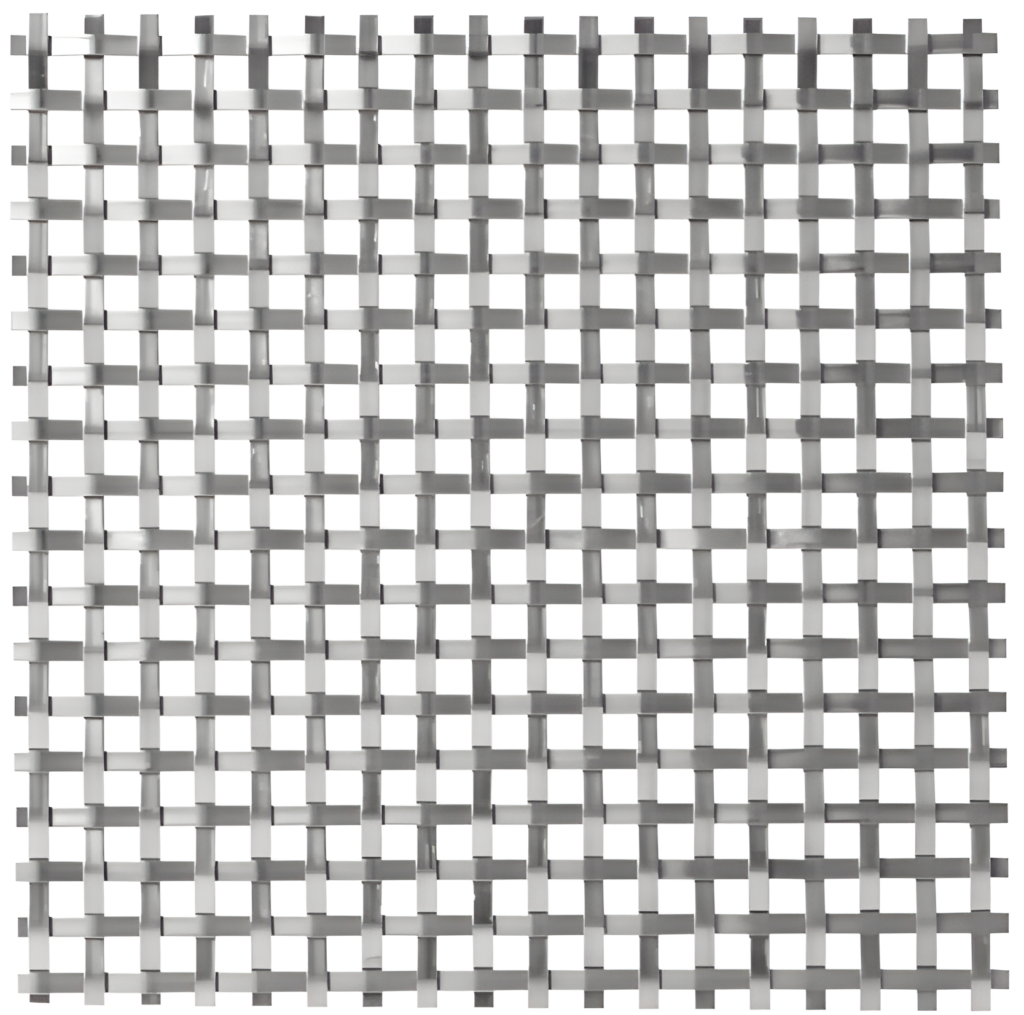

This plain crimp flat wire mesh features soft, gentle bends; its reflective flat wires bounce back ambient light in a uniquely metallic way, while the sturdy flat wire construction delivers reliable strength. It is perfect for sunshade control, interior partitions, guardrail infills, safety protection and ceiling installations.
Technical Data
| Model | AXIS 32 |
|---|---|
| Series | AXIS |
| Construction | Flat-wire basketweave |
| Panel type | Rigid |
| Open area | 32% |
| Overall thickness | 1/8" (3.18 mm) |
| Aspect ratio (opening) | 3.00:1 |
| Wire diameter (nominal) | 0.063" (1.6 mm) |
| Opening (nominal, W x H) | 0.154" x 0.051" (3.9 x 1.3 mm) |
| Wire centers (nominal) | 0.217" x 0.114" (5.5 x 2.9 mm) |
| Opening limitation (largest sphere) | 0.051" (1.3 mm) |
| Weight (nominal, stainless steel) | 8.8 kg/m² (1.80 lb/ft²) |
| Standard materials | Stainless steel 304 / 316, Bronze |
| Finishes | Mill, brushed or electropolished; powder coating (any RAL); PVD colors (titanium gold, rose gold, champagne, black titanium); antique plating (interior only) |
| Supply format | Rolls, cut sheets or framed panels made to your drawings. Maximum size depends on pattern and alloy - send your opening sizes for confirmation. |
Weight by Material (nominal)
| Material | kg/m² | lb/ft² |
|---|---|---|
| Stainless steel 304 / 316 | 8.8 | 1.80 |
| Bronze | 9.8 | 2.00 |
Performance & Design Data
| Solidity (1 - open area) | 68.0% |
|---|---|
| Geometric cut-off angle (short opening) | 22° |
| Railing infill check (100 mm / 4" sphere) | Openings smaller than 100 mm (4") |
| Fire behaviour | Bare stainless steel is a non-combustible metal. Coated, plated or backed finishes: classification per project test report. |
| Corrosion guidance | 304 for interiors and protected exteriors; 316 / 316L for exterior, coastal and polluted environments. |
Beyond this incidence angle, direct light and view through the short opening are blocked (louver effect).
Installation & Framing
| Recommended fixing | Framed panels: U-edging (captured edge), flat-bar clamp or angle frame. For wall and elevator cladding, clip or bond to an aluminum honeycomb or MDF backer. |
|---|
How to Specify
- Pattern name, e.g. AXIS 81
- Material and grade, e.g. Stainless steel 316
- Finish, e.g. PVD Black Titanium or RAL 9005
- Panel width x height and quantity
- Opening direction (rectangular patterns)
- Edge or frame profile and size
- Indoor or exterior, and site location
- Target delivery date
Nominal values are calculated from pattern geometry for stainless steel and may vary by approx. 10-15%. Weights for other alloys are calculated from the stainless steel value. Wire diameter, opening, alloy, finish and panel size can be customized - please confirm final specifications with a physical sample.
Design Files (CAD / BIM)
Recommended framing details: U-edging (captured edge)Flat bar (clamped edge)
All patterns: Design Resources →
Free download. IFC4 opens in Revit, ArchiCAD, Rhino, SketchUp and Navisworks; DXF in AutoCAD and BricsCAD. Native Revit families on request.
Key Features
- Plain crimp flat-wire mesh with soft, gentle bends
- Reflective flat wires create a distinctive metallic glow
- Sturdy flat-wire construction for reliable strength

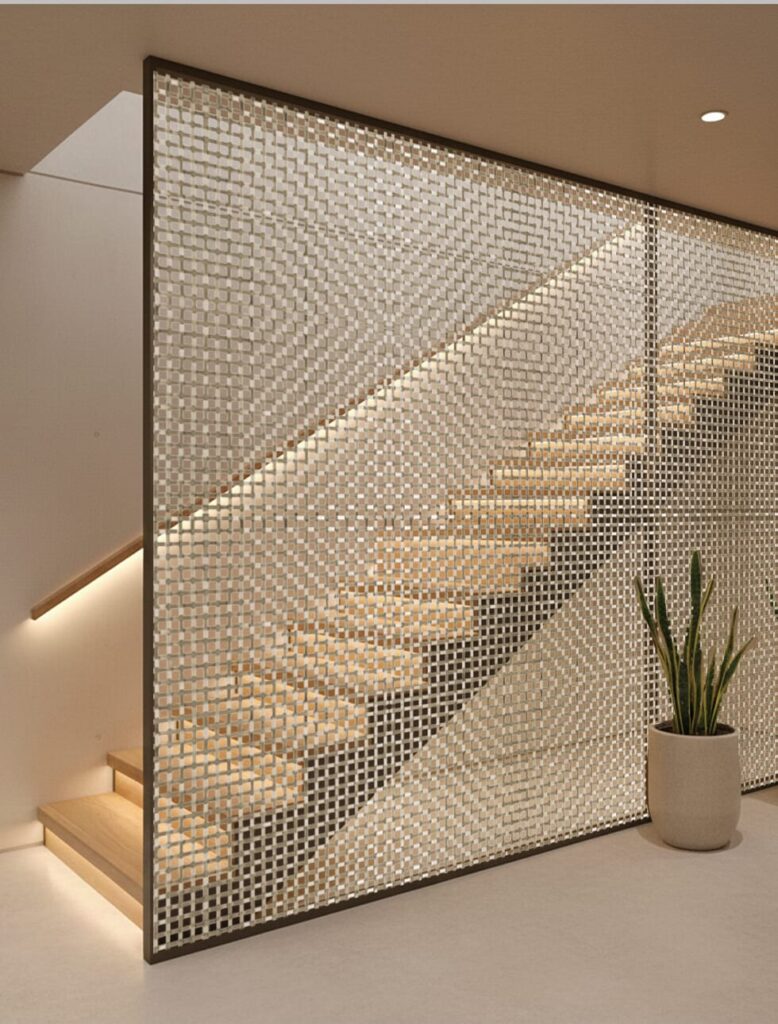

Ideal for: Sun shading, interior partitions, guardrail infills, safety protection and ceilings.
More AXIS Series Patterns
Need a frame or edge finish? See U-edging, flat bar and angle framing options.
Applications

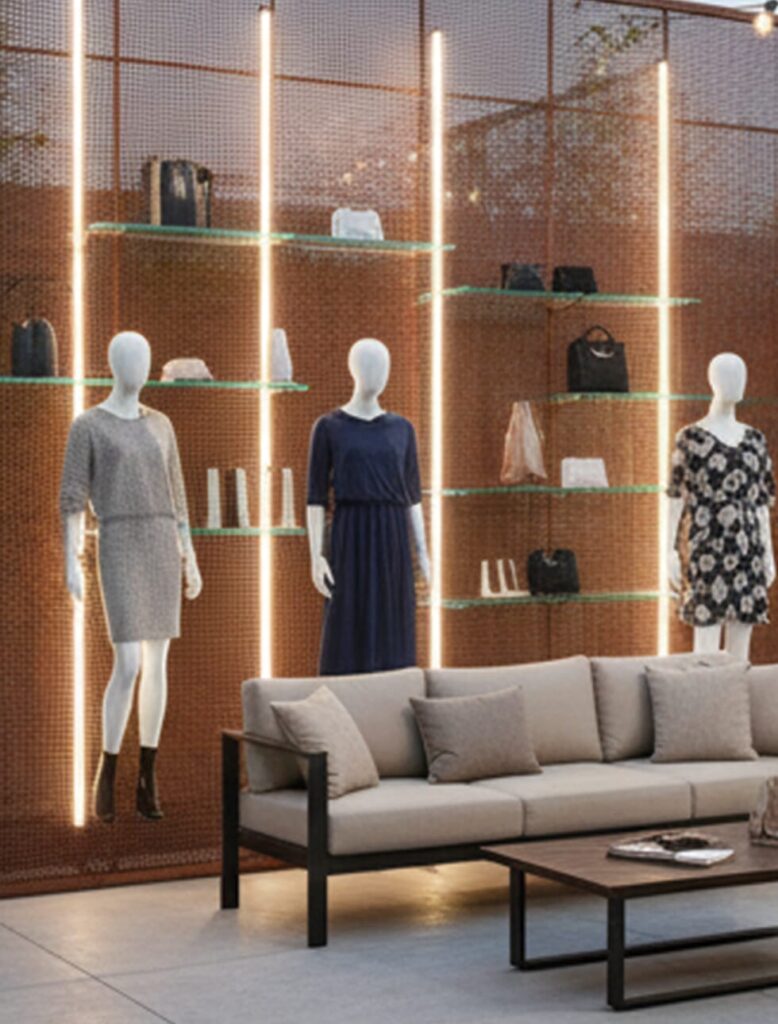

Store background

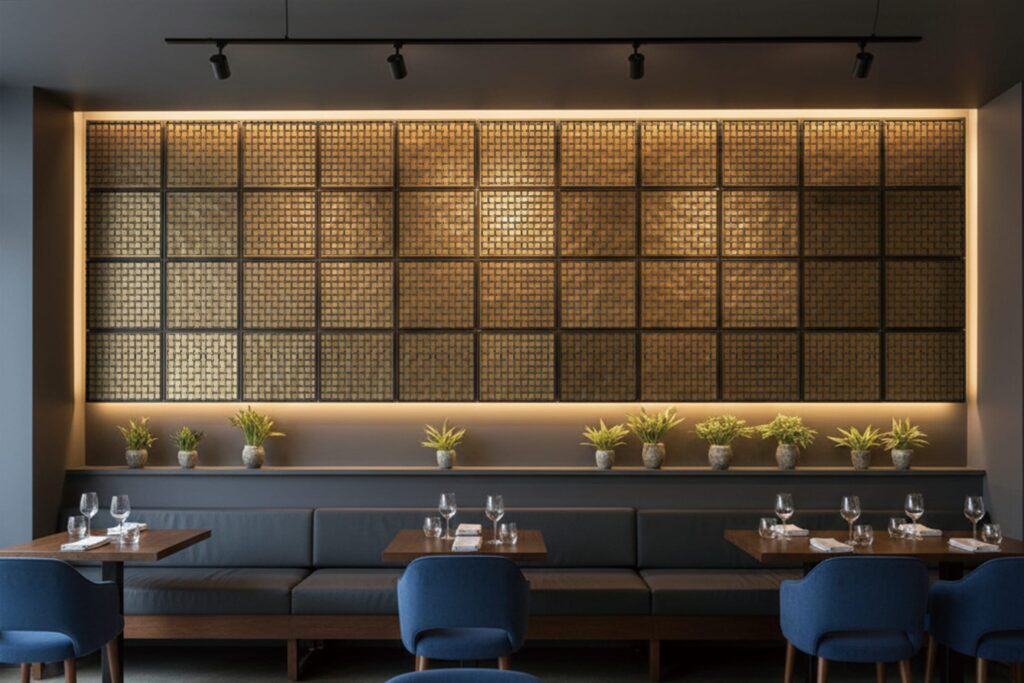

Background decoration
